SVA MSVA Budget Handbrake Caliper for Trikes Sidecars Quads & Kit Cars

- 07784 868673 -

** Email: **


(we offer 3 types)

NOTE:- Jan 2003 - UK MOT testing requirments state for a Tricycle/ 3 wheeled vehicle - only 1 wheel is required to have mechaincal parking brake - this can be either Front or Rear however.....

UK Construction and Use Regulations state after Dec 2002 - ALL wheels on 1 axle must be braked! - can be either Front or Rear.

Bottom line - the MOT Tester is correct in passing with only 1 wheel being fitted with parking brake - but your friendly Police Officer can still stop/fine you under the Construction and Use Regs if machine built after Dec2002! You have been warned folks.

Some options are: a) Fit a parking brake on the front engine sprocket shaft! b) Fit on the rear brake sprocket! or c) in the case of shaft drives - fit a disc/caliper between the propshaft and the diff.

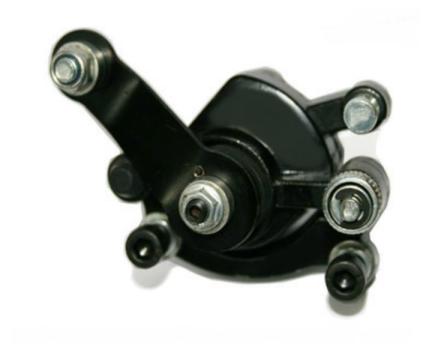

NEW on the market - suitable for Bikes Trikes and Quads - even kit mechanical handbrake caliper nice and compact - fitted easilly and it's unobtrusive - suitable for SVA and it's adjustable for brake pad wear - and for fitting to differend thickness's of discs just add washers/spacers in minutes (not supplied). Ideal for fitting to propshafts with discs and front single disc's for trikes - Sold complete with brake pads.

Overall Length: 90mm Height: 50mm Width: 60mm

Distance between mounting holes: 50mm

Currently gap for disc set at 3/4mm

Price.....£32.50 including FREE p&p (UK Mainland standard rate postcodes only). Delivery time 7-14 days from date of payment.

Email us at:- Payment via Paypal or Bank Transfer. For a quote send email and we will send you payment details by return.

Options:- 1) New handbrake cable @ £11.99 2) Large side-mounted Handbrake Lever Used £39.95. 3) Small - handlebar-mounted brake lever New £27.50.

Note: Add additional £5.99 p&p cost for handbrake lever if bought seperatly.

Tel: 07784-868673

Want something a bit flasher? see our top spec caliper here.....CLICK or mid range CLICK
