Billet aluminium SVA MSVA Handbrake Calipers for Kit Cars & Trikes

(we offer 3 types)

- 07784 868673 -

** Email: **


TRIKE TRIKES for sale u

NOTE:- Jan 2003 - UK MOT testing requirments state for a Tricycle/ 3 wheeled vehicle - only 1 wheel is required to have mechaincal parking brake - this can be either Front or Rear however.....

UK Construction and Use Regulations state after Dec 2002 - ALL wheels on 1 axle must be braked! - can be either Front or Rear.

Bottom line - the MOT Tester is correct in passing with only 1 wheel being fitted with parking brake - but your friendly Police Officer can still stop/fine you under the Construction and Use Regs if machine built after Dec2002! You have been warned folks.

Some options are: a) Fit a parking brake on the front engine sprocket shaft! b) Fit on the rear brake sprocket! or c) in the case of shaft drives - fit a disc/caliper between the propshaft and the diff.

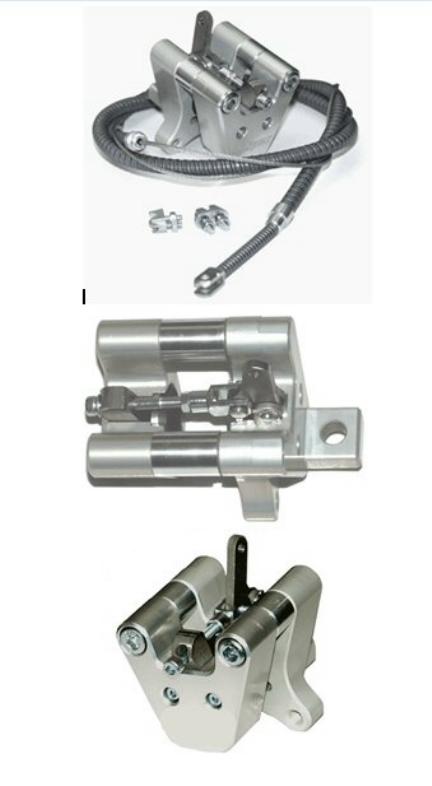

The BEST caliper we have seen to-date - Top quality UK manufactured mechanical handbrake caliper & cable - available in Short or Long Length.

Suitable for TRIKES and KIT CARS etc S.V.A.Legal - can be used on wheel disck or propshaft disc - by using your own fabricated brackets/mounts.

Caliper is available to suit brake disc thickness with: 6mm / 8mm / 10mm etc up-to 36mm in 2mm steps.

Delivery/manufacturing time 28+ days from receipt of payment.

Email us at:- bikehospitalairdrie@hotmail.comPayment via Paypal or Bank Transfer. For a quote send email and we will send you payment details by return.

Price: £ 299.00 (Includes FREE delivery to Standard charge UK Mainland Postcodes ONLY - all other charged at appropriate rate)

Options: 1) Large side-mounted Handbrake Lever (Used) £39.95.

2) Small handlebar-mounted brake lever (New) £27.50.

Add additional £5.99 p&p cost for handbrake lever if bought seperately.

Contact: 07784-868673


Lightweight and compact
CNC Machined Aluminium Body
Moving components manufactured from Stainless Steel
Rigid Design
Incorporating separate handbrake pads
Easy to Fit

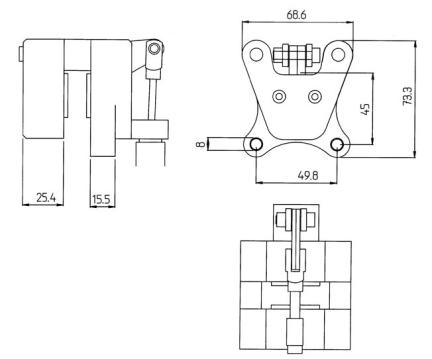

Technical Specification

Disc Thickness 6mm - 36mm
Piston Material Hard Anodised Aluminium
Pad Size
Weight 562g
Hydraulic Thread M10x1.0

(Silver Only)

Want something a bit cheaper? see also our BUDGET caliper's here.....CLICK and CLICK
